☑ Circuit Of Bridge Rectifier

A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input. Many electronic circuits require rectified dc power supply for powering the various electronic basic components from available ac mains supply.

Full Wave Bridge Rectification In This Rectification Model

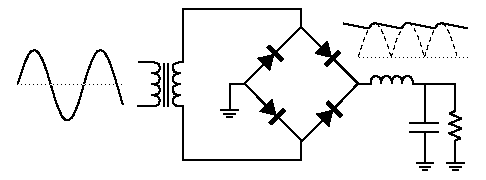

Full Wave Bridge Rectifier Circuit Diagram

Bridge Rectifier Definition Construction And Working

The load r load is connected to bridge through points 2 and 4.

Circuit of bridge rectifier. Assume that a load is connected at the output. The circuit diagram of bridge rectifier is given above. A bridge rectifier provides full wave rectification from a two wire ac input resulting in lower cost and weight as compared to a rectifier with a 3 wire input from a transformer with a center.

This consists of a bridge circuit which includes four diodes. A bridge rectifier circuit is a common part of the electronic power supplies. These can be individual diodes or it is also easy to obtain bridge rectifiers as a single component.

In bridge rectifier volatge can be applied to the diode bridge through a transformer or directly through the ac signal without the transformer. A diagram of the basic bridge rectifier circuit has a bridge rectifier block at the centre. The secondary winding of the transformer is connected to the two diametrically opposite points of the bridge at points 1 and 3.

A bridge rectifier is a type of full wave rectifier which uses four or more diodes in a bridge circuit configuration to efficiently convert the alternating current ac into direct current dc. When used in its most common application for conversion of an alternating current input into a direct current output it is known as a bridge rectifier. Bridge rectifier circuit and its working full wave bridge rectifier is formed by connecting four diodes together in such a way that their arms form a bridge hence the name bridge rectifier.
