☑ Coupled Inductor Topology

By leveraging the previous analysis we can determine the relevant equations required to design and optimize the coupled inductor component. Each coupled inductor has a main inductor inductively coupled with a secondary inductor.

What Is The Difference Between A Coupled Inductor

Updated Passive Pfc Circuit Cuts Inductor Value And Size

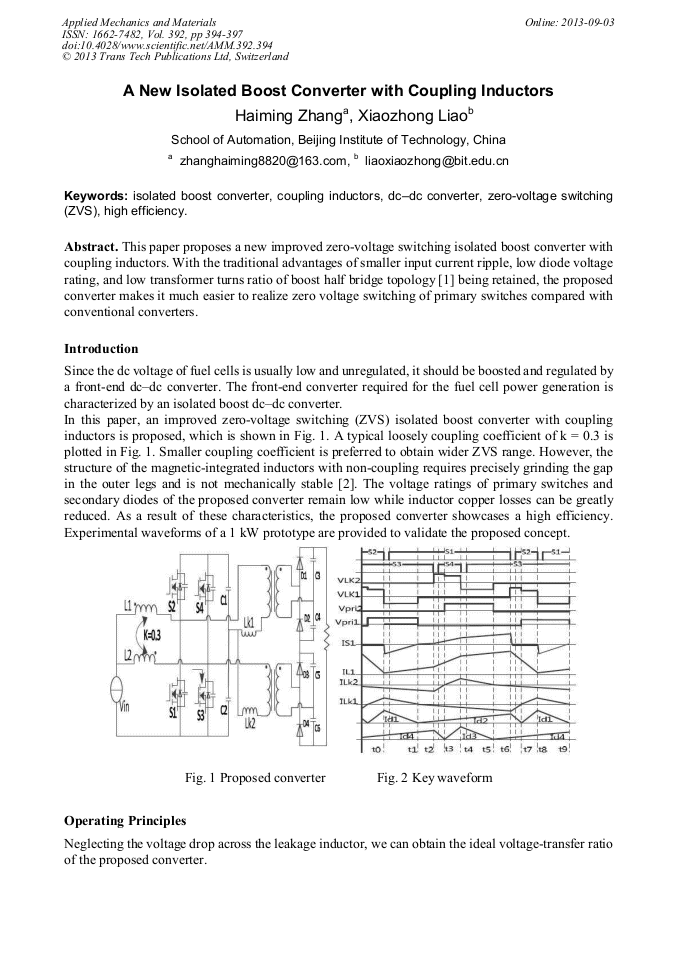

A New Isolated Boost Converter With Coupling Inductors

Inductor manufacturers began selling off the shelf coupled inductors in a single package at a cost only slightly higher than that of the comparable single inductor.

Coupled inductor topology. Additionally if a coupled choke with lower leakage inductance is used transient response can be improved. The price of a coupled inductor is also typically much less than the price of two single inductors. For morethan two phases this can be a ladder core with windings around each rung.

See selecting inductors for sepic. Consisting of two separate inductors wound on the same core coupled inductors typ ically come in a package with the same length and width as that of a single inductor of the same inductance value only slightly taller. Inductor coupling instead of using two discrete inductor components many designers implement a coupled inductor cuk converter using a single magnetic component that includes both inductors on the same core.

Designed for flyback sepic cuk zeta and other applications such as common mode chokes and wideband transformers. The coupled inductor not only provides a smaller footprint but also to get the same inductor ripple current requires only half the inductance required for a sepic with two separate. It is clear that the cimp topology relies on the design and implementation of the coupled inductor component.

A coupled inductor current doubler topology for a power converter has first and second rectifiers and first and second coupled inductors. Core winding losses compare losses of up to 6 inductors. Volterras patented coupled buck topology.

Any inductor or transformer with multiple windings is a coupled inductor. Multi phase converter magnetically coupled to cancel ac flux and ripple current single magnetic structure replaces multiple discrete inductors enables use of smaller inductor values to improve transient without increasing current ripple allows significant reduction in output capacitance. Analyzecompare tool plot the specifications l vs i and core losses of up to 6 inductors on the same graphs.

Coupled power inductors pfd2015 series. An alternative approach using a coupled choke topology in the multiphase converter eliminates the increased losses by reducing the phase ripple for the same output ripple voltage. 250 vrms one minute interwinding isolation.

Smallest coupled shielded power inductor 22 145 mm footprint 15 mm high. Processor power delivery with coupled output inductors are discussed. Strong coupling is shown to be feasible and effective at reducing ripple if the correctmagnetictopologyis used.

Coupled inductor finder find the perfect coupled inductor for sepic zeta or other applications.
